Description

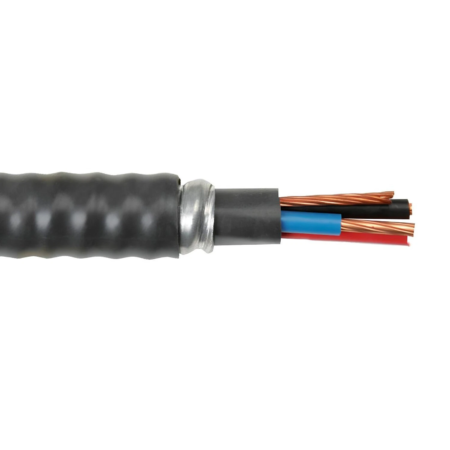

12-2 Aluminum Interlocked Armor Multi-conductor with Ground Teck 90 – PVC – 600V Armored Cables – Black
AWG Size:12
Amp or Amperage:220
Cable Type:TECK 90
Color:Black
Color Code Chart:108
Conductor:Annealed Bare Copper
Conductor Stranding:7
Construction:Conductor
Gnd. AWG:14
Ground:w/GND
Insulation:Cross Linked Polyethylene
Jacket:PVC
Lbs./M:220
Length:Cut to Length
No of Conductors:2
Nom. Insulation Thickness:30 mils
Nom. O.D.:.620 Inches Armor / .700 Inches Overall
Product Family:Industrial Cable
Product Type:Armored Cable
Shielded:N
Shielding:Non-Shielded
Solid/Stranded:Stranded
Temp. Rating:-40C to 90C
Voltage:600V
