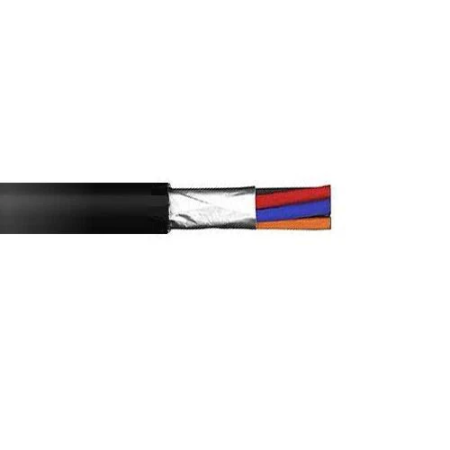

16 AWG 8T Individual & Overall Shielded Instrumentation Tray Cable UL Type TC – PVC/Nylon/PVC 90C – 600V – Black – Cut to Length

Description

16 AWG 8 Triad – Individual & Overall Shielded Aluminum/Polyester Tape – Instrumentation Tray Cable VNTC – PVC/Nylon Insulated Conductors – PVC Jacket 90C UL Type TC – 600V – E1 Wiring – Black – Cut to Length
AWG Size:16
Application:Class I Div II – Direct Burial – Sunlight – Oil Resistant
Cable Type:Instrumentation
Color:Black
Conductor:Bare Copper
Conductor Stranding:7
Construction:Triad
Insulation:PVC/Nylon
Jacket:PVC
Lbs./M:476
Length:Cut to Length
No of Conductors:24
No. of Triad:8
Nom Jacket Thickness:.080 Inches
Nom. Insulation Thickness:.015 Inches
Nom. O.D.:.857 Inches
Product Family:Industrial Cable
Product Type:Tray Cable
Ratings:UL1581 & 1202 (FT-4) UL 1277 Type TC-ER RoHS
Shield Material:Aluminum/Polyester Tape
Shielded:Y
Shielding:Individual & Overall Shielded
Solid/Stranded:Stranded
Temp. Rating:90C
Trade Name:VNTC
Type:UL Type TC
Voltage:600V
Wiring Type:E1
