#20/24P SPOS JX PLTC 300V 105C

Description

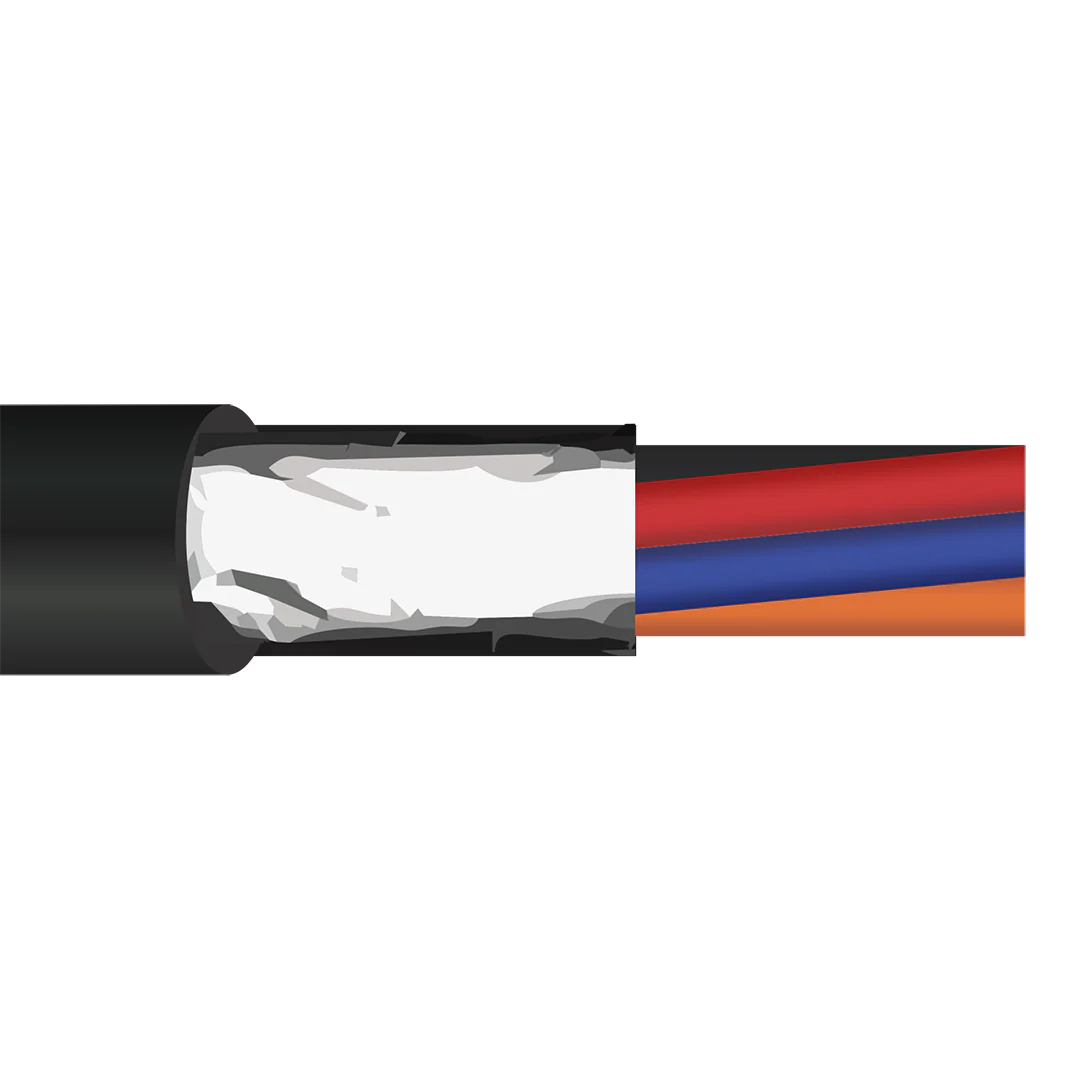

20-24PR Multiple Pairs – 300 Volt Individual & Overall Shield 105°C – UL Type PLTC Thermocouple Cable – Black
AWG Size:20
Conductor:Thermocouple Wire
Insulation:PVC
Jacket:FR PVC
Lbs./M:449
No of Conductors:48
Nom. Insulation Thickness:.016 Inches
Nom. O.D.:.931 Inches
Pairs:24
Shield Material:Polyester Backed Aluminum Tape
Shielding:Shielded
Solid/Stranded:Solid
Temp. Rating:105C
