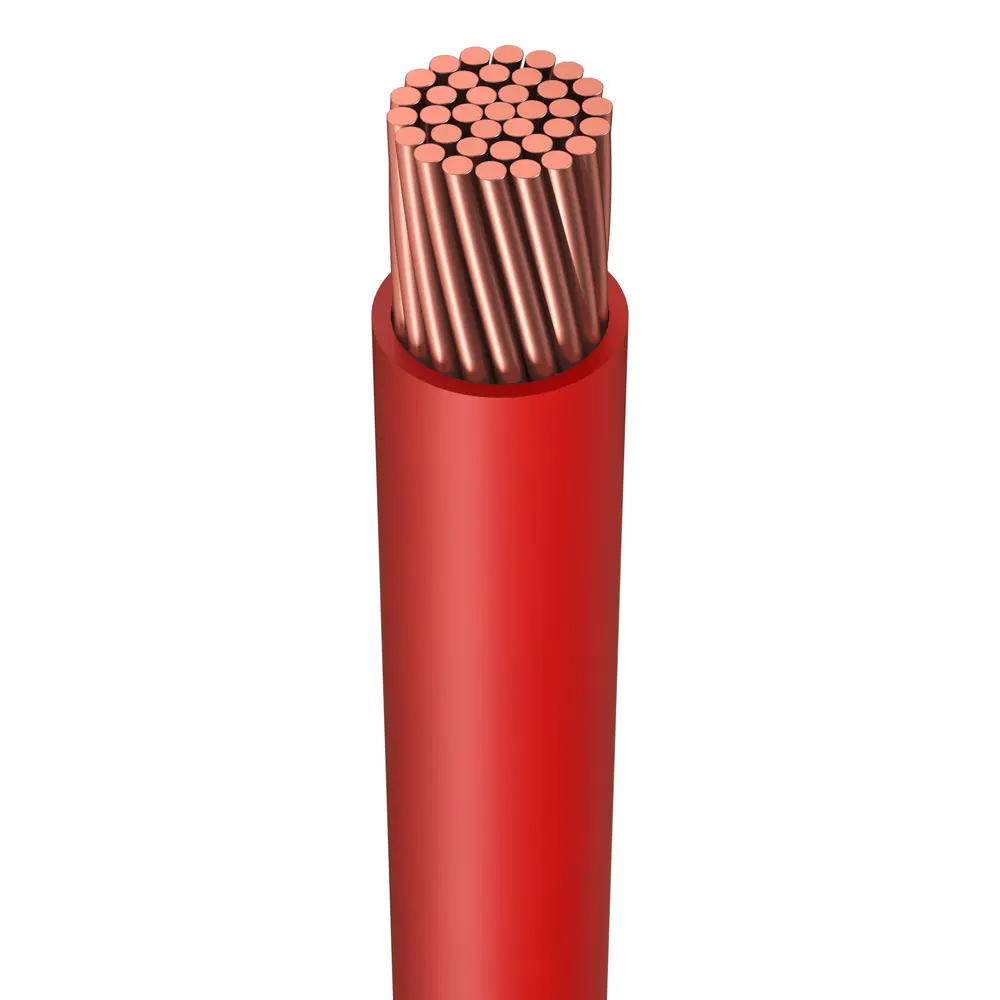

500MCM AWG Jumper Cable Stranded – 1235 STR – 90C – 5/15KV – Red – Cut to Length

Description

500MCM AWG Jumper Cable – 5 kV/15kV Transformer Lead Wire Non-Shielded – 90C Flexible And Portable Cord – Red
AWG Size:500MCM
Amp or Amperage:685
Cable Size:P20 P21
Cable Type:Jumper Cable
Color:Red
Conductor:Bare Annealed Copper
Conductor Stranding:1235
Insulation:EPR
Jacket:EPDM Rubber
Lbs./M:2055
Length:Cut to Length
No of Conductors:1
Nom. O.D.:1.395 Inches
Product Family:Industrial Cable
Product Type:Flexible & Portable Cord
Shield Material:Extruded Semi-Conducting Compound
Shielding:Non-Shielded
Solid/Stranded:Stranded
Temp. Rating:90C
Voltage:5/15KV
