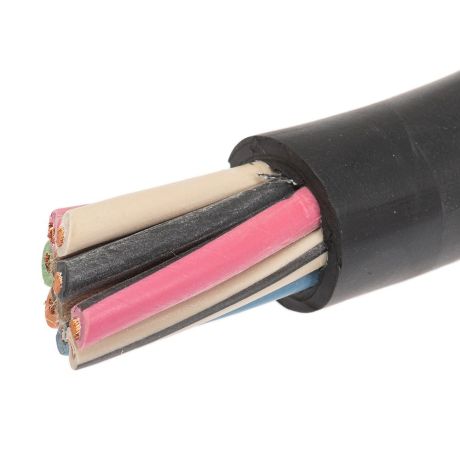

8/12 AWG 3 Power/ 4 Control Conductor 8/12/3 Power/ 4 Control w/Bare CU GND Non-Shielded ULTREX Composite Tray Cable UL Type TC 600V Method 4 – Black – Cut to Length

Description

8/12 AWG 3 Power/ 4 Control Conductor w/Bare CU GND – Non-Shielded – ULTREX Composite Tray Cable – PVC Jacket 90C UL Type TC – PVC/Nylon THHN Insulated Conductors – 600V Method 4 Wiring – Black – Cut to Length
AWG Size:8/12
Cable Size:T4
Cable Type:Composite
Color:Black
Conductor:Stranded Bare Copper
Conductor Stranding:19
Construction:Conductor
Gnd. AWG:8
Ground:w/Bare CU GND
Insulation:PVC/Nylon THHN
Jacket:PVC
Length:Cut to Length
No of Conductors:3 Power/ 4 Control
Nom Jacket Thickness:.060 Inches
Nom. O.D.:.675 Inches
Product Family:Industrial Cable
Product Type:Tray Cable
Ratings:UL
Shielded:N
Shielding:Non-Shielded
Solid/Stranded:Stranded
Temp. Rating:90C
Trade Name:ULTREX
Type:UL Type TC
Voltage:600V
Wiring Type:Method 4
