Description

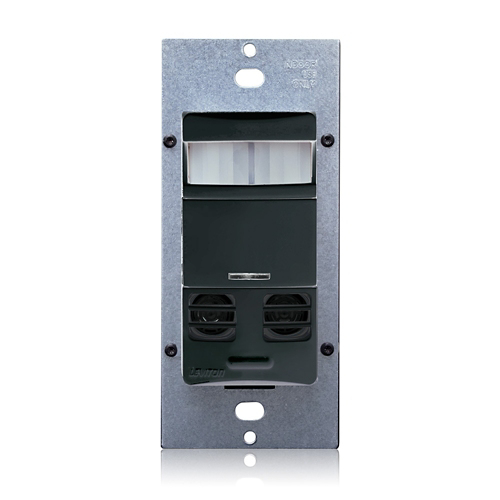

Product Line: OSSMT, Technology: Multi-Technology PIR/Ultrasonic, Switch Type: Single-Pole, Mounting: Wall Switch, Device Type: Occupancy Sensor, Coverage (Sq.Ft.): 2400 Sq. Ft., Pattern: 180°, Color: Black, Warranty: 5-Year LimitedLeviton’s OSSMT multi-technology Decora style wall switch occupancy sensor is used to provide automatic lighting control for energy savings and convenience in a variety of commercial applications, including: – retrofit- private and executive offices- conference rooms- storage areas- restrooms- classrooms- lounges- training areas. The OSSMT provides for automatic switching of incandescent lamps, low-voltage lighting with electronic and magnetic transformers, and electronic and magnetic fluorescent ballasts. The OSSMT features a manual override switch that can be used to keep lights off while an area is occupied, which may be desired in conference rooms, classrooms and other areas during video presentations. Designed to replace a single-pole Decora wall switch, it fits in a standard wall box. The OSSMT-md model requires a neutral and a ground connection. For retrofit applications, the OSSMT-GD model does not require a neutral wire for installation. Wall Plate not included with Occupancy Sensors.
Adjustment:Self-Adjusting
Code Compliance:California Title 24
Color:Black
Contact Type:Relay
Coverage Range Sq. Ft.:2400
Depth:1.35 Inch
Design:Decora Style
Device Type:Occupancy Sensor
Grade:Commercial
HP Rating:1/4 HP @ 120V
Input Voltage:120/277VAC
LED Color:Red/Green
LED Indicators:PIR/Ultrasonic Detection
Length:4.11 Inch
Load Rating:800W@120V INC 1200VA@120V 2700VA@277V FL
Load Type:All
Major Motion:60X35
Major Sq Ft:2100
Minor Motion:40X20
Minor Sq Ft:800
Mounting Height:36 – 54 Inch
Mounting Type:Wall Switch
NAFTA Approved:NAFTA
Neutral:Required
Pattern Degrees:180
Photo Cell:Ambient Override ON
Product Family:OSSMT
Product Line:Occupancy Sensors
Sensor Technology:PIR/Ultrasonic 40kHz
Sensor Type:Multi-Technology
Standards and Certifications:UL/cUL
Switch Type:Auto/Manual-ON/Auto-OFF
Time Adjustment:30s-30m
Type:Single-Pole Multi-Location
Wallplate:Order Separately
Warranty:5-Year Limited
Width:1.75 Inch
