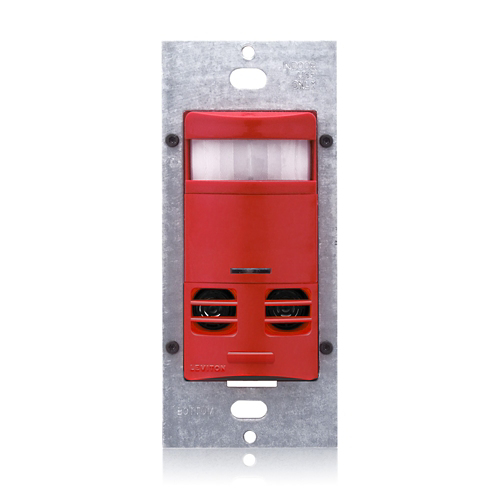

Leviton OSSMT-MDR Occupancy Sensor Decora Style Wall Switch PIR/Ultrasonic Auto/Manual-ON/Auto-OFF Single-Pole Multi-Location NAFTA Neutral Required – Red

Description

Product Line: OSSMT, Technology: Multi-Technology PIR/Ultrasonic, Switch Type: Single-Pole, Mounting: Wall Switch, Device Type: Occupancy Sensor, Coverage (Sq.Ft.): 2400 Sq. Ft., Pattern: 180°, Color: Red, Warranty: 5-Year Limited
Adjustment:Self-Adjusting
Code Compliance:California Title 24
Color:Red
Contact Type:Relay
Coverage Range Sq. Ft.:2400
Depth:1.35 Inch
Design:Decora Style
Device Type:Occupancy Sensor
Grade:Commercial
HP Rating:1/4 HP @ 120V
Input Voltage:120/277VAC
LED Color:Red/Green
LED Indicators:PIR/Ultrasonic Detection
Length:4.11 Inch
Load Rating:800W@120V INC 1200VA@120V 2700VA@277V FL
Load Type:All
Major Motion:60X35
Major Sq Ft:2100
Minor Motion:40X20
Minor Sq Ft:800
Mounting Height:36 – 54 Inch
Mounting Type:Wall Switch
NAFTA Approved:NAFTA
Neutral:Required
Pattern Degrees:180
Photo Cell:Ambient Override ON
Product Family:OSSMT
Product Line:Occupancy Sensors
Sensor Technology:PIR/Ultrasonic 40kHz
Sensor Type:Multi-Technology
Standards and Certifications:UL/cUL
Switch Type:Auto/Manual-ON/Auto-OFF
Time Adjustment:30s-30m
Type:Single-Pole Multi-Location
Wallplate:Order Separately
Warranty:5-Year Limited
Width:1.75 Inch
