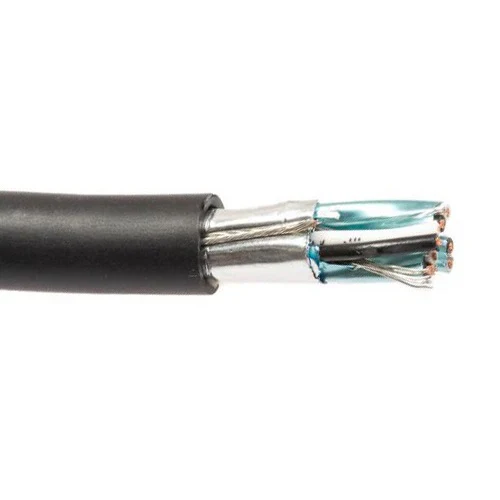

16 AWG 12P Individual & Overall Shielded Instrumentation Tray Cable UL PLTC/ITC – PVC/PVC 105C – 300V – Black – Cut to Length

Description

16 AWG 12 Pair – Individual & Overall Shielded Aluminum Mylar Tape 100% – Instrumentation Tray Cable PVIC – PVC Insulated Conductors – PVC Jacket 105C UL PLTC/ITC – 300V – E1 Wiring – Black – Cut to Length
AWG Size:16
Application:Class I Div II – Direct Burial – Sunlight Resistant
Cable Type:Instrumentation
Color:Black
Conductor:Annealed Bare Copper
Conductor Stranding:7
Construction:Pair
Insulation:PVC
Jacket:PVC
Lbs./M:454
Length:Cut to Length
No of Conductors:24
Nom Jacket Thickness:.060 Inches
Nom. Insulation Thickness:.016 Inches
Nom. O.D.:.771 Inches
Pairs:12
Product Family:Industrial Cable
Product Type:Tray Cable
Ratings:UL Std 13 PLTC & CL3 UL2250 ITC CSA C22.2 239 CUL CIC IEEE 1202 RoHS
Shield Material:Aluminum Mylar Tape 100%
Shielded:Y
Shielding:Individual & Overall Shielded
Solid/Stranded:Stranded
Temp. Rating:105C
Trade Name:PVIC
Type:UL PLTC/ITC
Voltage:300V
Wiring Type:E1
